Parametric Search Selector

Part Number	Images	Insertion Loss (dB)	Frequency Range (MHz)	Impedance Ratio	Port Impedance(Ohm)	Dimensions （mm×mm)	Alternative Partnumber
MCBT1-1-016	MCBT1-1-016	0.8	3 - 200	1:1	50/25/25	3.81×3.81	ETC1-1TTR
MCBT4-1-017	MCBT4-1-017	0.8	2 - 800	1:4	50/100/100	3.81×3.81	ETC4-1-2TR
MCBT4-1-022	MCBT4-1-022	0.7	1 - 350	1:4	50/100/100	3.81×3.81	MABA-007237-ETC410
MCBT1-1-040	MCBT1-1-040	0.8	0.3 - 200	1:1	50/25/25	3.81×3.81	MABAES0060
MCBT4-1-041	MCBT4-1-041	0.8	2 - 800	1:4	50/100/100	3.81×3.81	MABAES0061
MCBT1-1-076	MCBT1-1-076	0.5	0.4 - 500	1:1	50/25/25	3.81×3.81	MABA-007569-ETK42T
MCBT2-1-077	MCBT2-1-077	1	3 - 300	1:2	50/50/50	3.81×3.81	TC1-1T+
MCBT4-1-149	MCBT4-1-149	0.4	2 - 1000	1:4	50/75	3.81×3.81	TC2-1T+
MCBT16-1-225	MCBT16-1-225	0.4	0.6 - 160	1:16	50/400/400	3.81×3.81	ADT2-1T
MCBT2-1-133	MCBT2-1-133	0.5	0.4 - 500	1:2	50/50/50	7.30×6.40	TC16-161T+

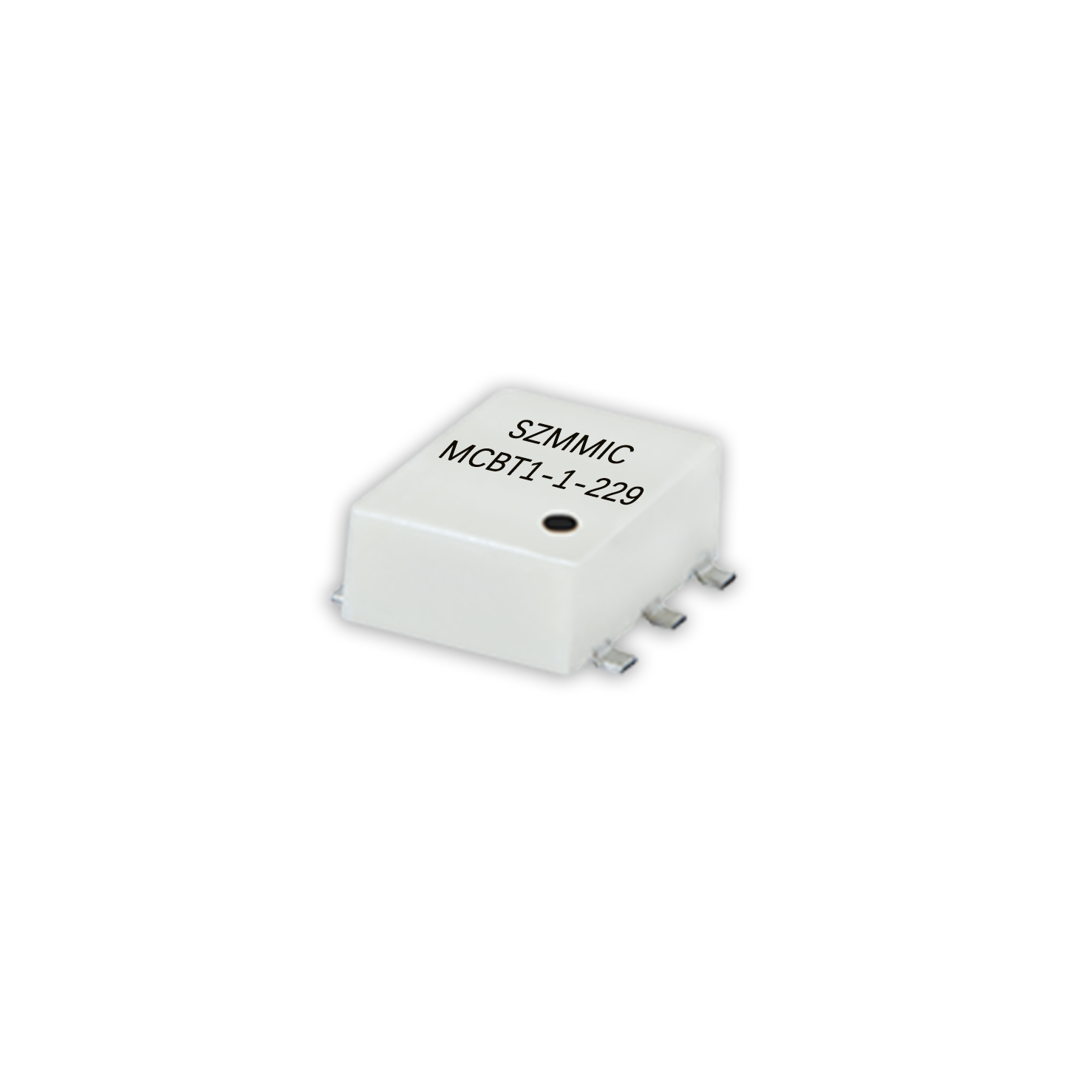

MCBT1-1-229	MCBT1-1-229	0.8	0.4 - 800	1:1	75/37.5/37.5	7.11×6.35	ADT1-1WT+
MCBT1-1-241	MCBT1-1-241	1	500 - 4500	1:1	50/25/25	3.81×3.81	TC1-1-43X
